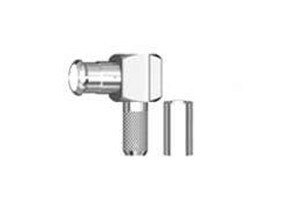

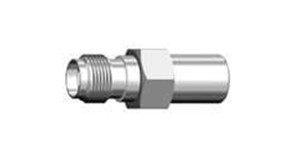

產品名稱：CC4-C-JW1.5- 瀏覽次數：
- 榮譽出品：射頻同軸連接器
軟電纜連接器/ Flexible cable connector
壓接式插頭/ Crimp Plugs
適用軟電纜/ For flexible cables
|
產品名稱/Product type |
適用電纜/Apply cable |
備注/Notes |
|
CC4-C-JW1.5 |
SYV-75-2-1,RG-179,1.5C-2V |
CC4型陽頭配SYV-75-2-1,RG-179,1.5C-2V電纜 |
主要技術特性 TECHNICAL CHARACTERISTICS
|
溫度范圍 Temp.range |
-40～+85°C |
|
振 動 Vibration |
100m/s2 (10～500Hz) |
|
特性阻抗 Impedance |
50Ω,75Ω |
|
頻率范圍 Frequency Range |
DC～4GHz (50Ω); DC～1GHz (75Ω) |
|
工作電壓 Working Voltage |
350V max (有效值) |
|
耐 壓 Withstand Voltage |
750V rms (海平面有效值) |
|
接觸電阻 Contact resistance |
內導體之間 Center Contact≤ 6 mΩ |
|
外導體之間 Outer Contact ≤ 3 mΩ | |
|
絕緣電阻 Insulation resistance |
≥ 1000 mΩ |
|
電壓駐波比 VSWR |
直式 Straight ≤ 1.20 |
|
彎式 Right angle ≤ 1.22 | |
|
耐久性Durability(mating) |
≥500次（cycles） |
材料與涂覆 MATERIAL & PLATING
|
殼體 shell |
黃銅 brass |
鍍鎳或鍍金 nickel or gold plated |
|
插針 contact pin |
黃銅 brass |
鍍硬金 gold plated |
|
插孔 socket |
鈹青銅 beryllium |
鍍硬金 gold plated |
|
彈性接觸件elastic contact |
鍍青銅或錫青銅beryllium or tin brass |
鍍硬金 gold plated |
|
絕緣體 insulator |
聚四氟乙烯 PTFE |
|
|
壓接套 crimping suite |
銅合金 copper alloy |
鍍鎳或鍍金 nickel or gold plated |
|
O型密封件o-ring sealing |
硅橡膠 6146 silastic |
|
適用技術標準 APPLICABLE STANDARD
CECC 22230;
DIN 47297.
