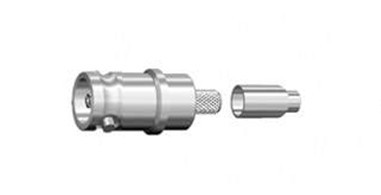

產品名稱：SSMC-C-ZJ1- 瀏覽次數：
- 榮譽出品：射頻同軸連接器
軟電纜連接器/ Flexible cable connector
壓接式插頭/ Crimp Plugs
適用軟電纜/ For flexible cables
|
產品名稱/Product type |
適用電纜/Apply cable |
備注/Notes |
|
SSMC-C-ZJ1 |
SYV-50-1，SFF-50-1，RG-178，RG-196 |
SSMC型陽頭配SYV-50-1，SFF-50-1，RG-178，RG-196電纜 |
主要技術特性 TECHNICAL CHARACTERISTICS
|
溫度范圍 Temp.range |
-55～+155°C |
|
振 動 Vibration |
98m/s2 (加速度10g) 10～500Hz |
|
特性阻抗 Impedance |
50Ω, |
|
頻率范圍 Frequency Range |
DC～6GHz |
|
工作電壓 Working Voltage |
250V max (有效值) |
|
耐 壓 Withstand Voltage |
500V rms (海平面 小值) |
|
接觸電阻 Contact resistance |
內導體之間 Center Contact≤ 5 mΩ |
|
外導體之間 Outer Contact≤ 2.5 mΩ | |
|
絕緣電阻 Insulation resistance |
≥ 1000 MΩ |
|
電壓駐波比 VSWR |
直式 Straight DC～1GHz ≤1.15; 1～3GHz ≤ 1.25 |
|
彎式 Right angle DC～1GHz ≤1.20; 1～3GHz ≤ 1.35 | |
|
耐久性Durability(mating) |
≥500次（cycles） |
材料與涂覆 MATERIAL & PLATING
|
殼體 shell |
黃銅 brass |
鍍硬金 gold plated |
|
插針 contact pin |
錫青銅 tin brass |
鍍硬金 gold plated |
|
插孔 socket |
鈹青銅 beryllium |
鍍硬金 gold plated |
|
絕緣體 insulator |
聚四氟乙烯 PTFE |
|
|
o型密封件 o-ring sealing |
硅橡膠 6146silastic |
|
|
壓接套 crimping suite |
銅合金 copper alloy |
鍍硬金 gold plated |
適用技術標準 APPLICABLE STANDARD
MIL-C-39012;
CECC 22180;
IEC 60169-20.
