產品名稱：MMCX-50JE-1- 瀏覽次數：
- 榮譽出品：射頻同軸連接器
印制電路板連接器/ Printed circuit board connectors
直式插頭/Straight Plugs
|
產品名稱/Product type |
適用電纜/Apply cable |
備注/Notes |
|

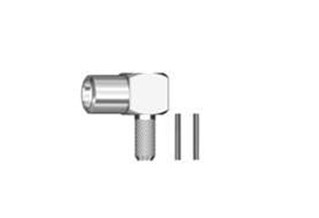

MMCX-50JE-1 |
|
MMCX型陽頭 |
主要技術特性 TECHNICAL CHARACTERISTICS
|
溫度范圍 Temp.range |
-55～+155°C |
|
特性阻抗 Impedance |
50Ω, |
|
頻率范圍 Frequency Range |
DC～6GHz |
|
工作電壓 Working Voltage |
170V max(有效值) |
|
耐 壓 Withstand Voltage |
500V rms(海平面 小值) |
|
接觸電阻 Contact resistance |
內導體之間 Center Contact≤ 5 mΩ |
|
外導體之間 Outer Contact≤ 2.5 mΩ | |
|
絕緣電阻 Insulation resistance |
≥ 1000 MΩ |
|
插入損耗 Insertion loss |
≤ 0.15dB (3GHz max) |
|
電壓駐波比 VSWR |
直式 Straight ≤ 1.15 |
|
彎式 Right angle ≤ 1.25 | |
|
防水等級 |
IP67 |
|
機械耐久性 |
≥500次（cycles） |
材料與涂覆 MATERIAL & PLATING
|
殼體 shell |
黃銅 brass |
鍍硬金 gold plated |
|
內導體 inner conductor |
鈹青銅或錫青銅beryllium or tin brass |
鍍硬金 gold plated |
|
絕緣體 insulator |
聚四氟乙烯 PTFE 壓接套 crimping suite |
合金 copper alloy |
|
o型密封件 o-ring sealing |
鎳或鍍金 nickel or gold plated |
橡膠 6146 silastic |
|
彈性接觸件elastic contact |
鈹青銅 beryllium |
鍍硬金 gold plated |
適用技術標準 APPLICABLE STANDARD
CECC 22340;
CONNECTORS FOR FLEXIBLE CABLE
