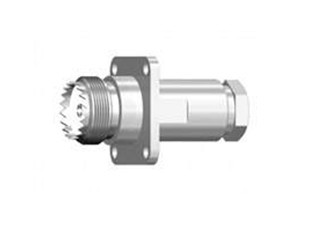

產品名稱：MCX-50KWE-4- 瀏覽次數：
- 榮譽出品：射頻同軸連接器
印制電路板連接器/ Printed circuit board connectors
L型插座/L-type socket
|
產品名稱/Product type |
適用電纜/Apply cable |
備注/Notes |
|
MCX-50KWE-4 |
|
MCX型母頭 |
主要技術特性 TECHNICAL CHARACTERISTICS
|
溫度范圍 Temp.range |
-65～+165°C (PE Cable -40～+85°C) |
|
振 動 Vibration |
MIL-STD-202, Method 213 |
|
特性阻抗 Impedance |
50Ω, 75Ω |
|
頻率范圍 Frequency Range |
DC～6GHz |
|
工作電壓 Working Voltage |
250V (50Ω) 170V (75Ω) |
|
耐 壓 Withstand Voltage |
750V (50Ω) 250V (75Ω) |
|
接觸電阻 Contact resistance |
內導體之間 Center Contact≤ 5 mΩ |
|
外導體之間 Outer Contact≤ 2.5 mΩ | |
|
絕緣電阻 Insulation resistance |
≥ 1000 MΩ |
|
插入損耗 Insertion loss |
≤ 0.15dB (3GHz max) |
|
電壓駐波比 VSWR |
直式 Straight ≤ 1.15 |
|
彎式 Right angle ≤ 1.25 | |
|
防水等級 |
IP67 |
|
機械耐久性 |
≥500次 |
材料與涂覆 MATERIAL & PLATING
|
殼體 shell |
黃銅 brass |
鍍硬金 gold plated |
|
插針 contact pin |
黃銅brass |
鍍硬金 gold plated |
|
插孔 socket |
鈹青銅 beryllium |
鍍硬金 gold plated |
|
絕緣體 insulator |
聚四氟乙烯 PTFE |
|
|
o型密封件 o-ring sealing |
硅橡膠 6146silastic |
|
|
彈性接觸件elastic contact |
鈹青銅 beryllium |
鍍硬金 gold plated |
|
壓接套 crimping suite |
銅合金 copper alloy |
鍍鎳或鍍金 nickel or gold plated |
適用技術標準 APPLICABLE STANDARD
CECC 22220;
IEC 61169-36.
