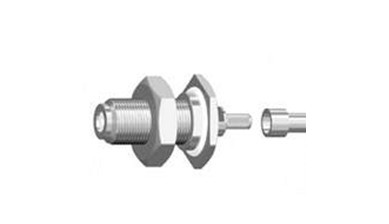

產品名稱：SMA-50KFD-40- 瀏覽次數：
- 榮譽出品：射頻同軸連接器
微帶連接器/ Microstrip connector
直式插座/Straight socket
|
產品名稱/Product type |
適用電纜/Apply cable |
備注/Notes |
|
SMA-50KFD-40 |
|
SMA型母頭 |
主要技術特性 TECHNICAL CHARACTERISTICS
|
溫度范圍 Temp.range |
-65～+165°C (PE Cable -40～+85°C) | |
|
振 動 Vibration |
MIL-STD-202,Method 213 | |
|
特性阻抗 Impedance |
50Ω, | |
|
頻率范圍 Frequency Range |
DC～12.4GHz(半剛電纜 0～18GHz) | |
|
工作電壓 Working Voltage |
335V max (有效值) | |
|
耐 壓 Withstand Voltage |
1000V rms(海平面 小值) | |
|
接觸電阻 Contact resistance |
內導體之間 Center Contact≤ 3 mΩ | |
|
外導體之間 Outer Contact≤ 2 mΩ | ||
|
絕緣電阻 Insulation resistance |
≥ 5000 MΩ | |
|
插入損耗 Insertion loss |
≤ 0.15dB (3GHz max) | |
|
電壓駐波比 VSWR |
直式 Straight |
軟電纜 ≤1.10+0.002f |
|
半剛電纜 ≤1.05+0.001f | ||
|
彎式 Right angle |
軟電纜 ≤1.20+0.003f | |
|
半剛電纜 ≤1.10+0.001f | ||
|
機械耐久性 |
≥500次 | |
材料與涂覆 MATERIAL & PLATING
|
殼體 shell |
黃銅 brass |
鍍硬金 gold plated |
|
插針 contact pin |
黃銅 brass |
鍍硬金 gold plated |
|
插孔 socket |
鈹青銅 beryllium |
鍍硬金 gold plated |
|
壓接套 crimping suite |
銅合金 copper alloy |
鍍鎳或鍍金 nickel or gold plated |
|
絕緣體 insulator |
聚四氟乙烯 PTFE |
|
|
o型密封件 o-ring sealing |
硅橡膠6146 silastic |
|
|
彈性接觸件elastic contact |
鈹青銅 beryllium |
鍍硬金 gold plated |
適用技術標準 APPLICABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15
