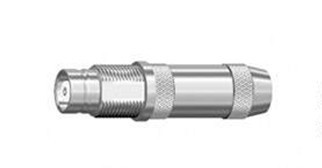

產品名稱：DIN/M-1-1/4"-CP- 瀏覽次數：
- 榮譽出品：射頻同軸連接器
| Item Name: | RF Connector | V.S.W.R: | ≤ 1.10 |
| Model: | DIN/M-1-1/4"-CP | Inner plating: | Silver plate |
| Class: | 7/16(DIN)-Male | Shell plating: | Silver plate |
| Frequency: | DC-7.5GHz | Temperature: | -40℃- +85℃ |
| Impedance: | 50 Ω | Durability: | 500 Cycles |
| Match Cable: | 1-1/4" Standard Feeder | Waterproof: | IP65‚RoHS |
